Roof Tiles

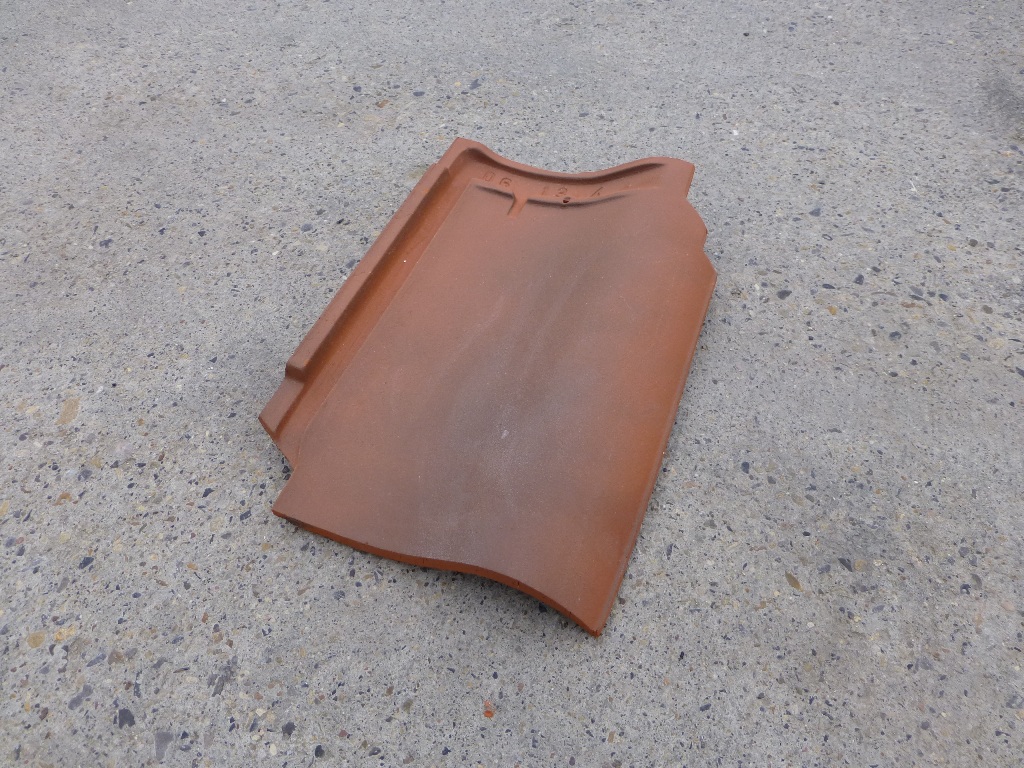

Single Panne S Rustic Red

Single Panne S Rustic Red
For full brochure follow the following link:
http://www.ribaproductselector.com/Docs/1/09101/external/COL836714.pdf


Single Panne S Rustic Red

Single Panne S Rustic Red
For full brochure follow the following link:
http://www.ribaproductselector.com/Docs/1/09101/external/COL836714.pdf


  • QTY/pallet: 420
  • No. of tiles: 20 per m2
  • Nominal gauge: 275 mm
  • Linear cover: N/A
  • Minimum headlap: N/A
  • Unit weight: 2.3 kg
  • Weight/m2: 46 kg
  • Min roof pitch: 22.5 degrees
  • Batten coverage: 3.63m @ 275mm gauge
  • Batten sizes: 38 x 25mm rafter centres 450mm or 50 x 25mm rafter centres 600mm
  • Nail size: 50 x 3.35mm
