Monopole No. 1

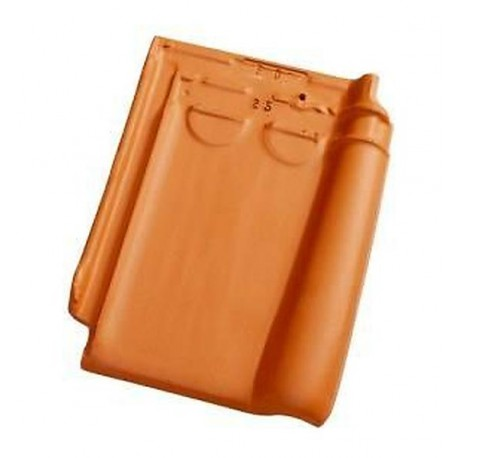

The Monopole Tile no.1 is a traditional single roman interlocking clay roof tile produced at Wardrecques in the north of France. Dimensions : Overall width 216mm, overall length 300mm.

Monopole No. 1

The Monopole Tile no.1 is a traditional single roman interlocking clay roof tile produced at Wardrecques in the north of France. Dimensions : Overall width 216mm, overall length 300mm.
  • QTY/pallet: 600
  • No. of tiles: 22 per m2
  • Nominal gauge: 241 mm
  • Linear cover: N/A
  • Minimum headlap: 59 mm
  • Unit weight: 2 kg
  • Weight/m2: 44 KG
  • Min roof pitch: 25
  • Batten coverage: 4.15
  • Batten sizes: 38 X 25mm rafter centres 450mm, 50 x 25mm rafter centres 600mm
  • Nail size: 50 x 3.35mm
