Roof Tiles

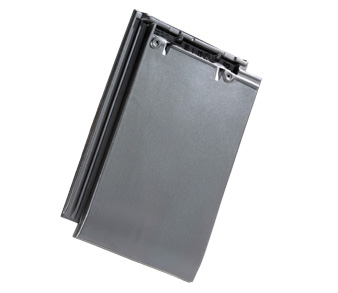

HP10

The HP10 interlocking roof tile is manufactured with an exceptionally smooth surface and is finished with a tapered leading edge for aesthetics. The tile's large modular size (overall 460mm long x 306mm wide, working width 268mm), combined with a variable guage, ensures ease of fixing and economy. It provides a cost-effective alternative to many large format concrete tiles & slates. It is available in two colour's Burnt Red or Slate Grey.

HP10

The HP10 interlocking roof tile is manufactured with an exceptionally smooth surface and is finished with a tapered leading edge for aesthetics. The tile's large modular size (overall 460mm long x 306mm wide, working width 268mm), combined with a variable guage, ensures ease of fixing and economy. It provides a cost-effective alternative to many large format concrete tiles & slates. It is available in two colour's Burnt Red or Slate Grey.
  • QTY/pallet: 240
  • No. of tiles: 10 per m2 per m2
  • Nominal gauge: 310 mm - 376 mm
  • Linear cover: N/A
  • Minimum headlap: 84mm
  • Unit weight: 4.3 kg
  • Weight/m2: 43 kg
  • Min roof pitch: 17.5 degrees
  • Batten coverage: 2.66lm @ 376mm guage
  • Batten sizes: 38 x 25mm rafter centres 450mm. 50 x 25mm rafter centres 600mm.
  • Nail size: 50 x 3.35mm
